What Is a Frequency Converter?
A frequency converter is an electrical device that converts alternating current, or AC power, from one frequency to another. In many countries, the standard grid frequency is either 50 Hz or 60 Hz. For example, equipment designed for a 60 Hz market may not perform correctly when connected directly to a 50 Hz power supply, especially if the equipment includes motors, compressors, pumps, or timing-sensitive components.
In simple terms, a frequency converter helps bridge the gap between different power standards. It allows equipment designed for one electrical environment to work in another, helping businesses reduce compatibility problems when sourcing or exporting machinery.
A frequency converter is often used together with voltage adjustment. This is why some buyers may also compare it with a voltage converter. While a voltage converter changes the voltage level, such as stepping power up or down, a frequency converter changes the frequency. Some power conversion systems can manage both voltage and frequency, depending on the design.
How Does a Frequency Converter Work?

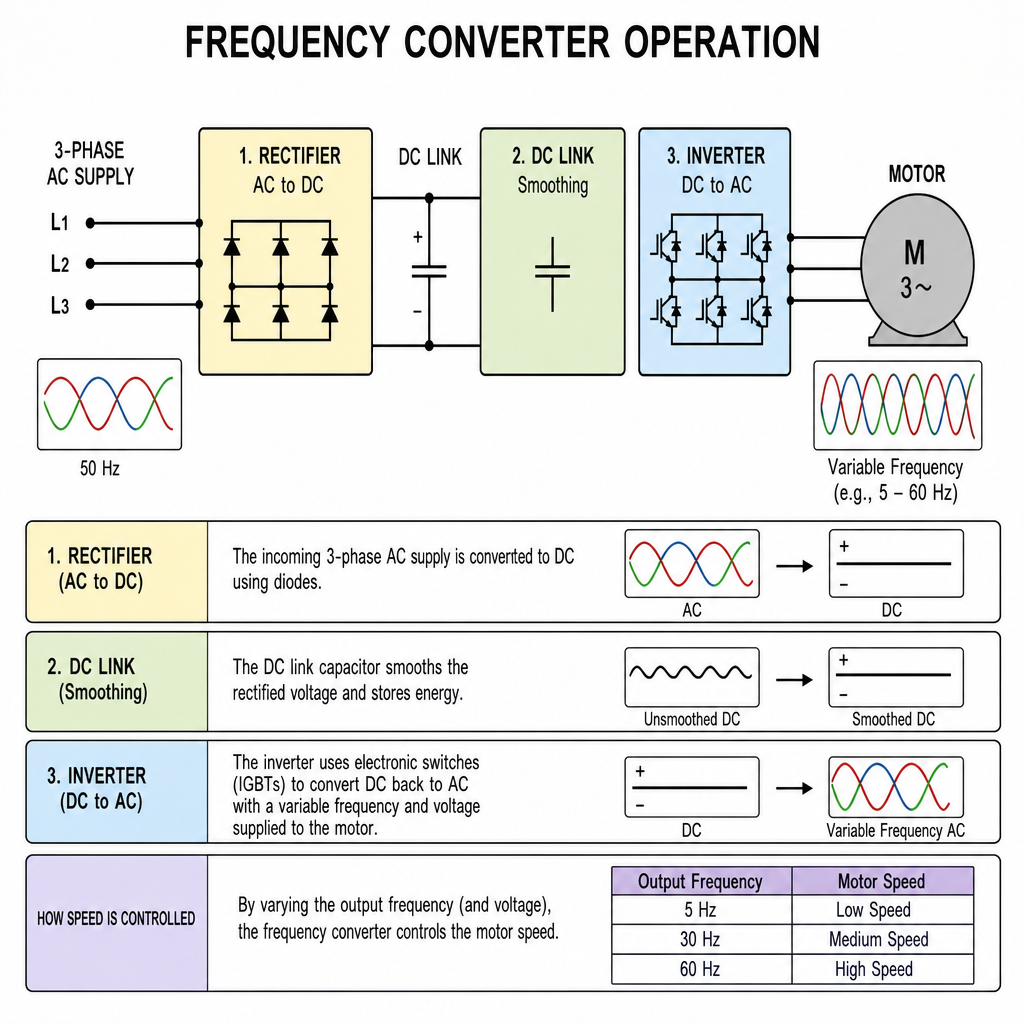

Although designs vary, many modern frequency converters follow a similar process. First, the incoming AC power is converted into DC power. Then, the DC power is converted back into AC power at the required output frequency. This process allows the device to create a stable and controlled power output.
In many industrial systems, electronic components manage the conversion process precisely. This allows the converter to provide output power at a fixed frequency, such as 50 Hz or 60 Hz, or at an adjustable frequency depending on the application.
When the output frequency can be adjusted, the device may also be associated with variable frequency control. Variable frequency technology is widely used in motor control because changing the frequency changes the speed of an AC motor. This is useful for applications such as fans, pumps, conveyors, mixers, and other rotating equipment.
